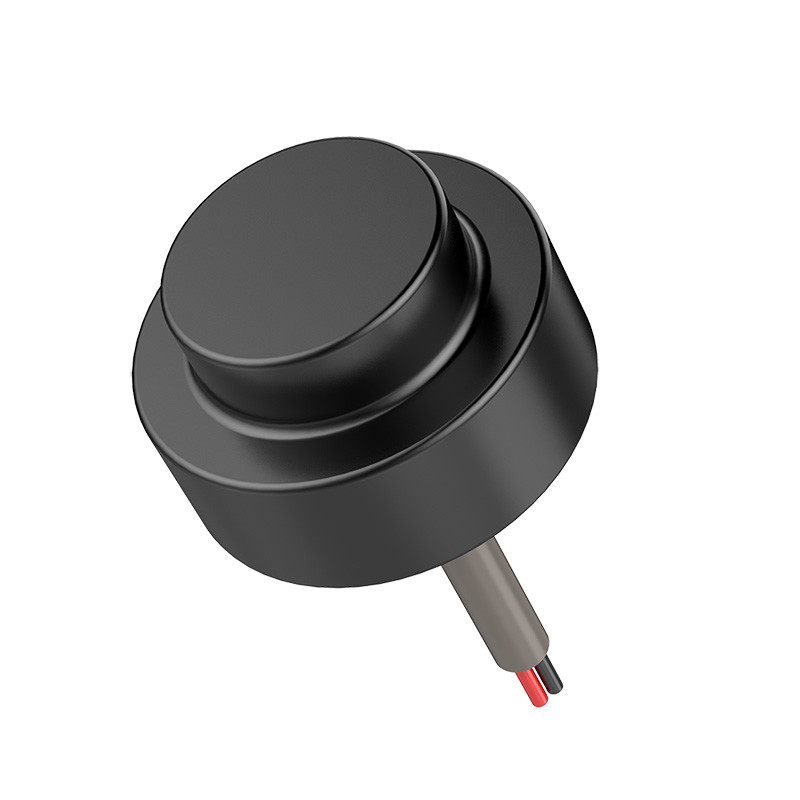

Ultrasonic Flow Transducer For Water Meter 1MHZ Liquid Flow Measurement

  • Ultrasonic Flow Transducer For Water Meter 1MHZ Liquid Flow Measurement
Place of Origin China
Brand Name AUDIOWELL
Model Number US0075
Minimum Order Quantity 10000
Delivery Time 15 works days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency 1MHZ Allowanble Maximum Operating Pressure 2.5MPa
φ Of Transmiting Surface 10mm
Leave a Message
Product Description

Ultrasonic Flow Transducer For Water Meter 1MHZ Liquid Flow Measurement

Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.

Features

- High sensitivity
- The electrical performance is highly stable at high and low temperature with zero flow drift.
- Good consistency.

Specifications

Model US0075
Thick Resonant Frequency 1130±30KHz
Resonant Impedance 600±250Ω
Free Capacitance 400±20%pF
Allowanble Maximum Operating Pressure 2.5MPa
Operating Temperature +0.1℃~+90℃



Applications

- Ultrasonic water meter
- Water flow measurement



Ultrasonic Flow Transducer For Water Meter 1MHZ Liquid Flow Measurement 0
