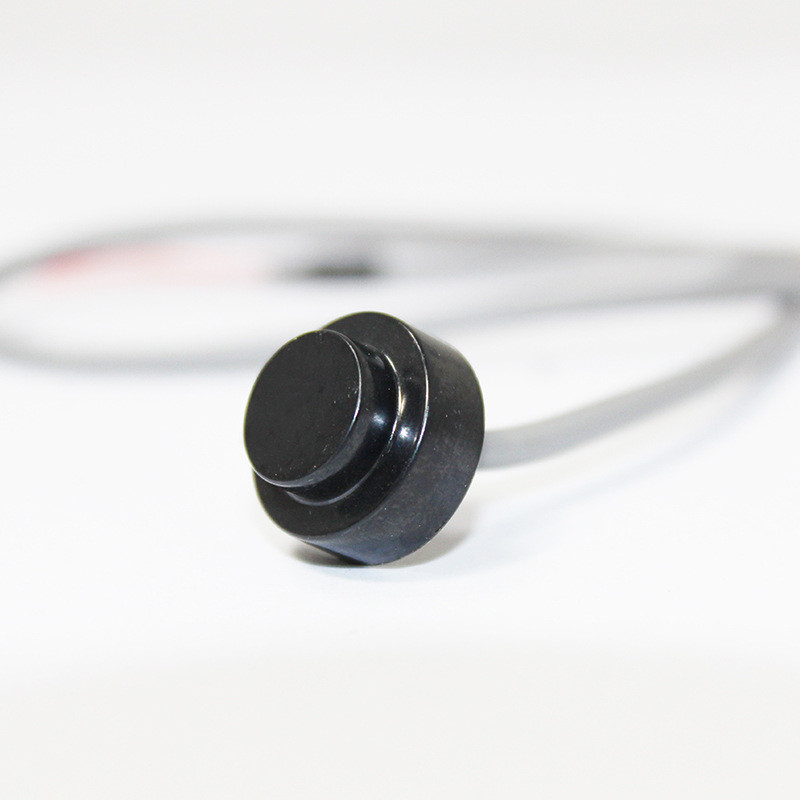

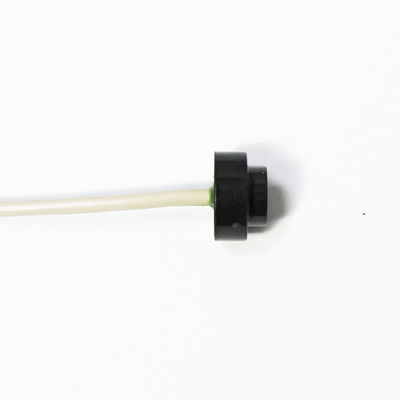

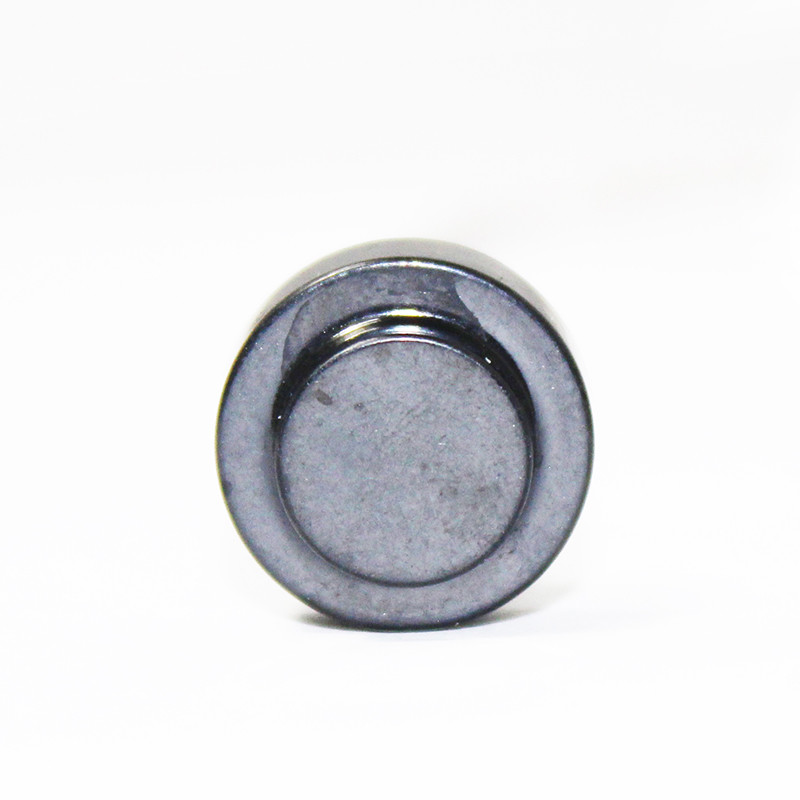

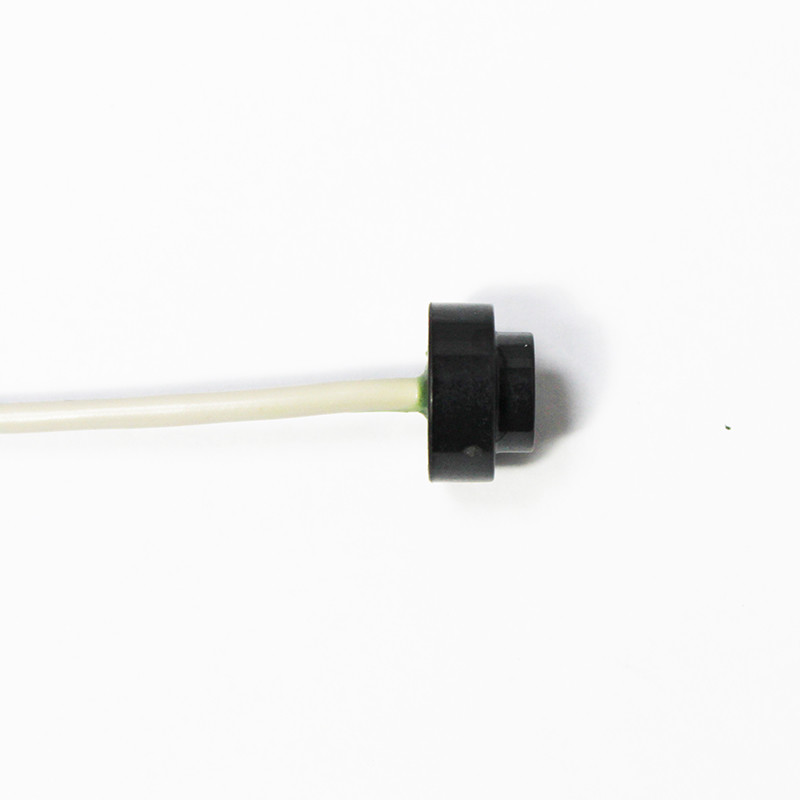

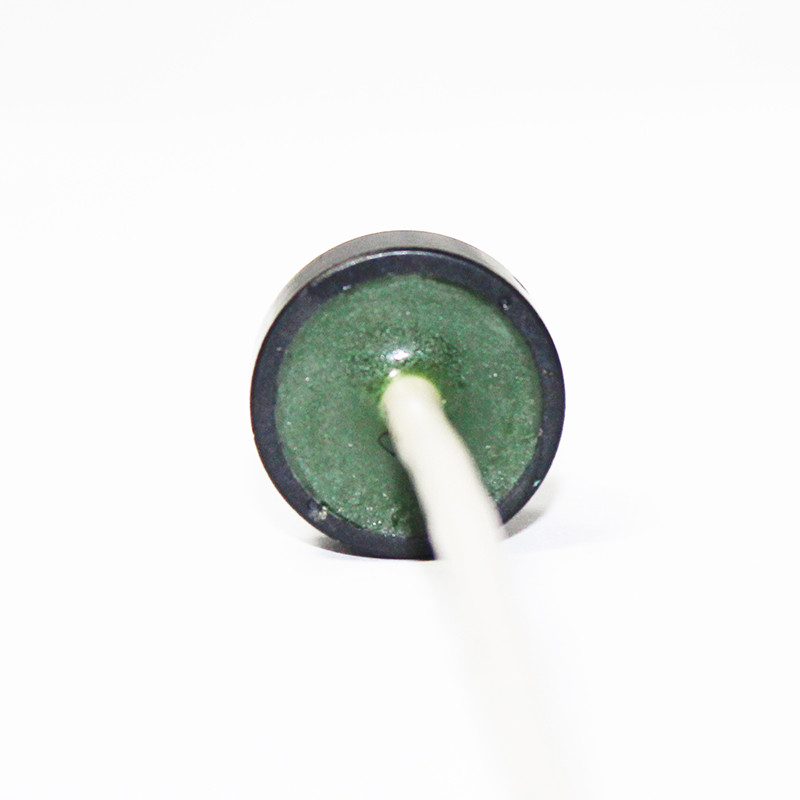

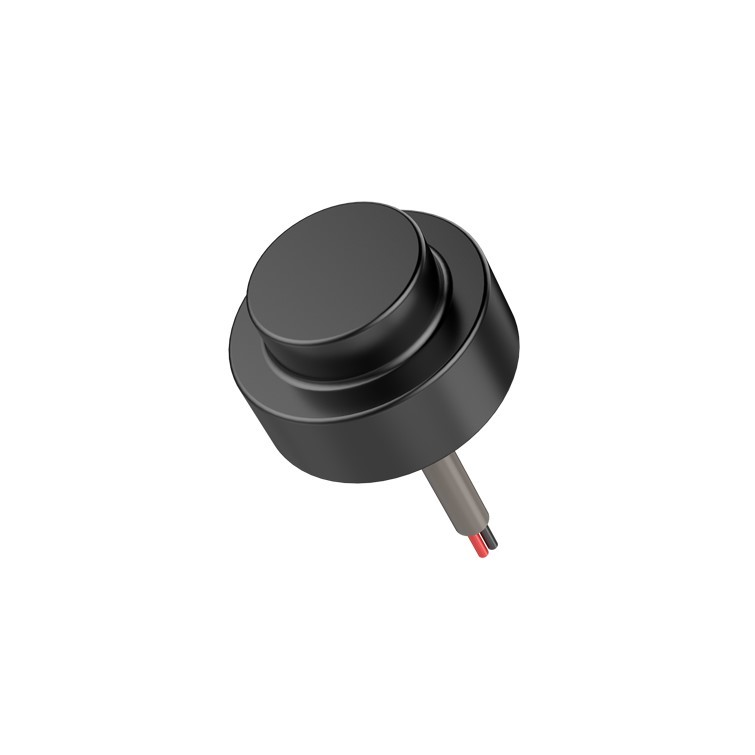

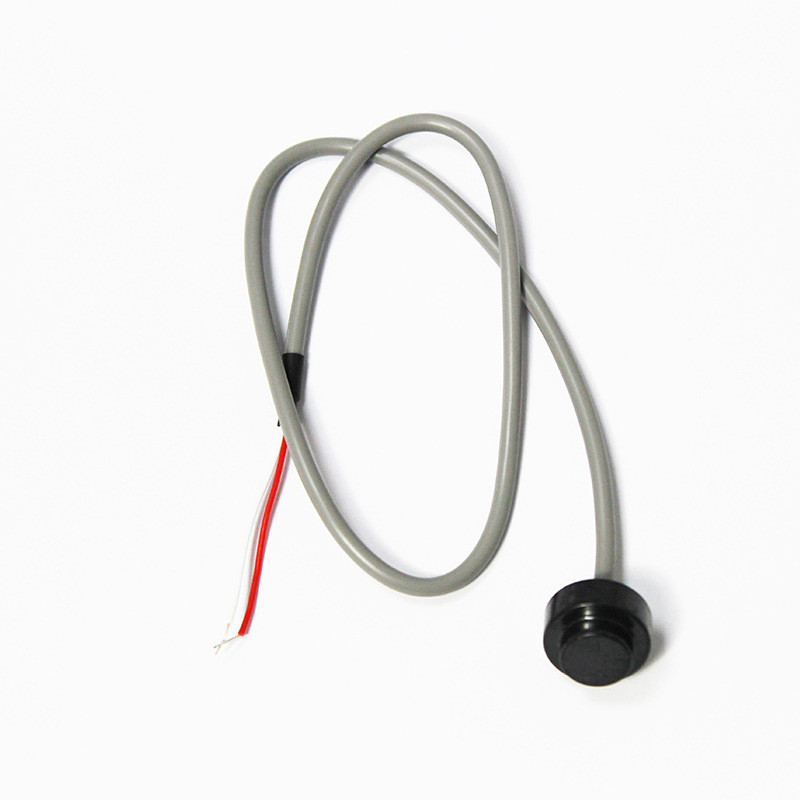

Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter

  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
  • Ultrasonic Sensor 2 Mhz Ultrasonic Transducer 2.5MPa Water Flow Rate Meter
Place of Origin Guangdong, China
Brand Name AUDIOWELL
Model Number US0078
Minimum Order Quantity 2000 pieces
Price $3.00 - $5.00/pieces
Supply Ability 100000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features 2 MHz Series Ultrasonic Flow Transducer
Mounting Type Inlaid Description Ultrasonic Flow Transducer For Water Flow Meter, Ultrasonic Flow Transducer
Type Ultrasonic Transducer Usage Water Meter
Theory Ultrasonic Output Analog Signal
Product Name Ultrasonic Flow Transducer Frequency 2MHZ
Material Of Housing Plastic Transmiting Surface 10mm
Application Intelligent Water Meter Resonant Impedance 10~90 Ω
2 MHz Resonant Impedance 250±100 Ω Capacitance 600±20% PF
Receiving Signal 330~530 MV Operating Temperature +0.1~+90 ℃
High Light

Ultrasonic 2 Mhz Ultrasonic Transducer

,

2.5MPa 2 Mhz Ultrasonic Transducer

,

2.5MPa Water Flow Rate Meter
Leave a Message
Product Description

AUDIOWELL Ultrasonic Sensor 2MHz Flow Transducer Plastic Housing Water Flowrate Meter 2.5MPa

Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.

Specifications

Item
Standard
Thick Resonant Frequency
2110KHz
Resonant Impedance
10~90 Ω
Free Capacitance
600±20% pF
Allowable Maximum Operating Pressure
2.5 MPa
Operating Temperature
+0.1~+90℃


Applications

- Water Meter
